What’s in the system
Everything you need to get started
Our lightweight construction, attached hardware, and simple-to-set forms cannot be beaten for speed and efficiency.
8' 6 Bar System Overview
The 8' 6 Bar forming system is designed for residential and light commercial work. Every form in the 8' 6 bar forming system is designed with 16" on center bar spacing. The 8' 6 bar forming system, because of its bar spacing, allows "stagger stacking" of forms to create acceptable form heights above 8'. This eliminates any continuous horizontal seams in the form work.
Compatable Forms
The 6 bar system utilizes the following form heights:
- 2'8" 2 bar
- 4' 3 bar
- 5'4" 4 bar
- 6'8" 5 bar
- 8' 6 bar
- 9'4" 7 bar
What is "Stagger Stacking"
"Stagger Stacking" is when a contractor uses compatible forms in the 8' 6 bar system to alternate form heights to achieve various wall heights. Alternating the forms eliminates a continuous horizontal seam going through the form work.

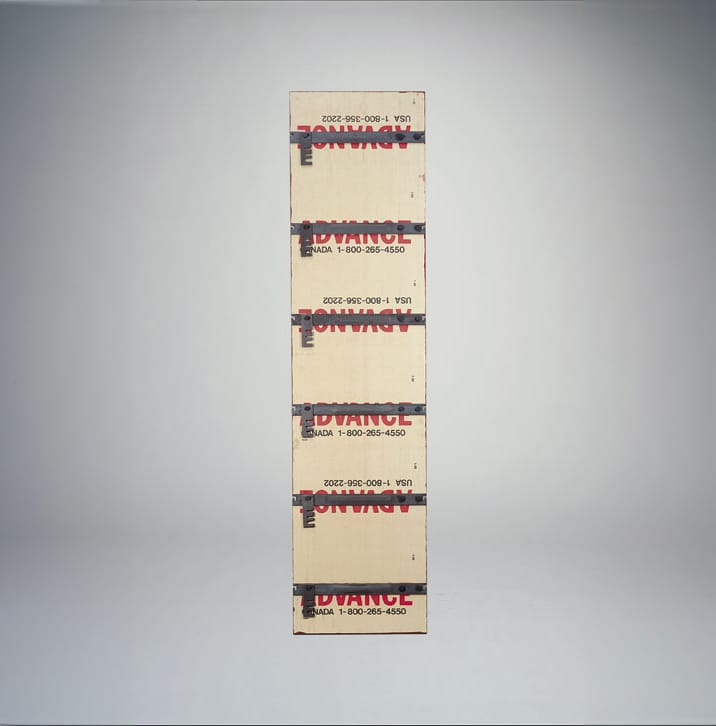

8ft 6 bar
